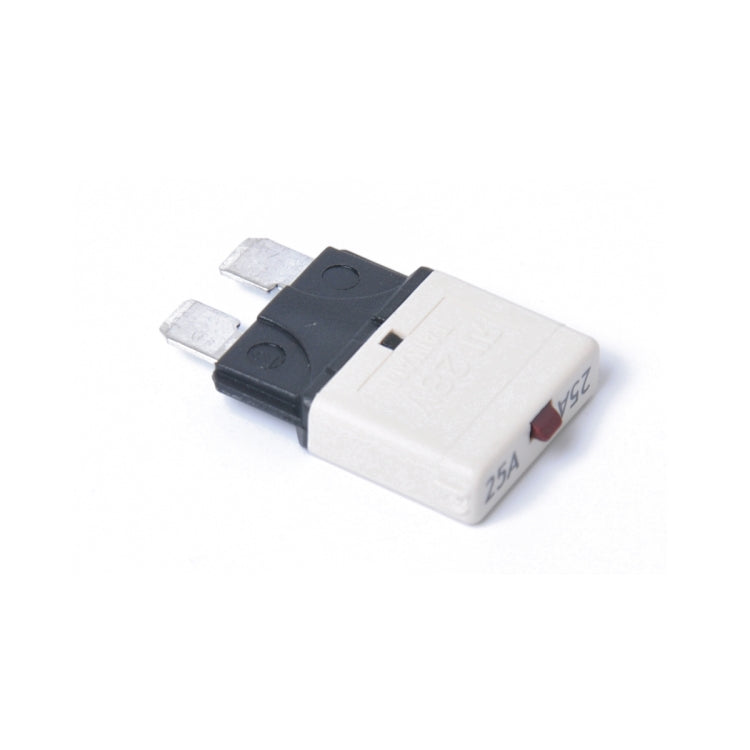

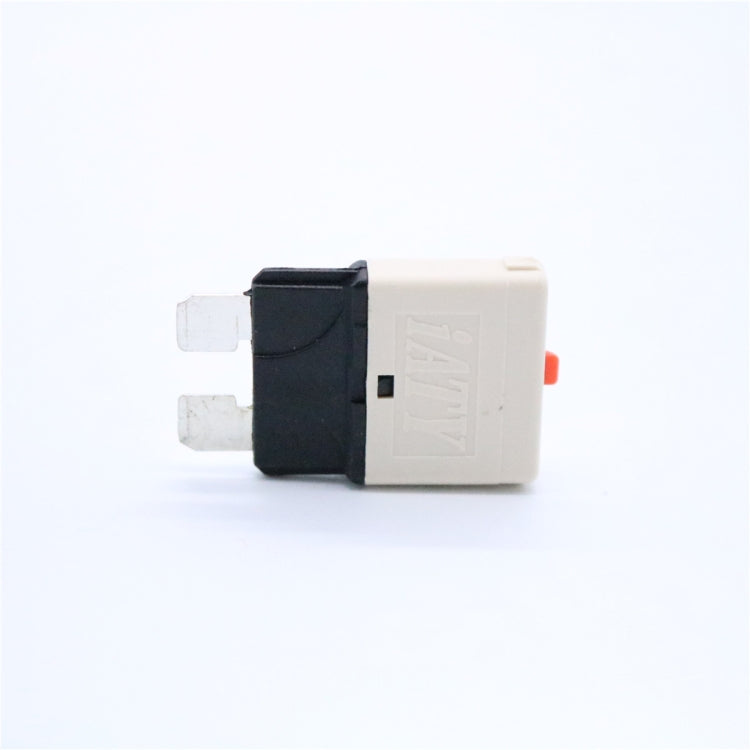

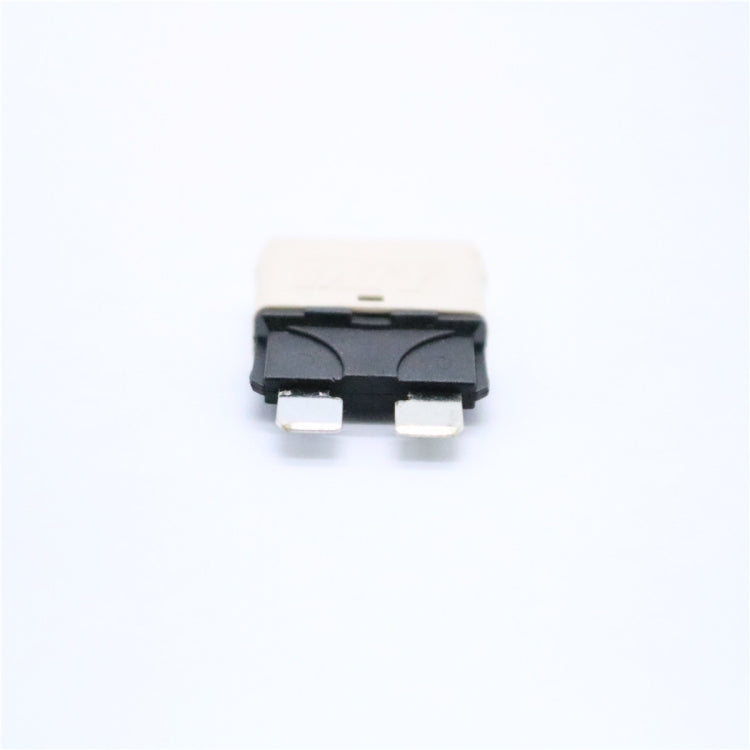

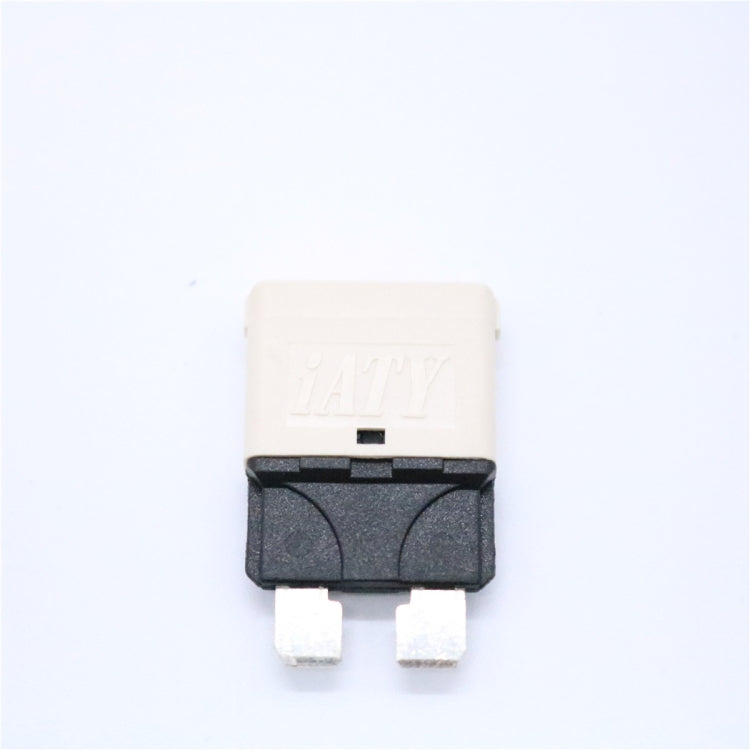

25AMP DC28V Circuit Breaker Trip Fuses Standard Blade Fuse Manual Reset
25AMP DC28V Circuit Breaker Trip Fuses Standard Blade Fuse Manual Reset
Regular price
R 120.19
Regular price
Sale price
R 120.19
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
1. Miniaturized single pole press-to-reset thermal circuit breaker designed. For automotive fuse block installation.Extends the benefits of circuit breaker performance and Convenience to application.
2. Rating: 25A 28V DC
3. Interrupt Rating: 2000A 28V DC.
4. Operating Temperature Rating: -40 to 85 degree Celsius
5. Storage Temperature Rating: -40 to 125 degree Celsius
6. Materials: UL-Rated 94V-0 Thermoplastic Body.
7. Tin-Plated Brass Alloy Terminal.
8. Termination: 5.2mm Wide Blades Compatible with ATY-N Type Fuse Blocks.
9. Typical Applications:Exra low voltage wiring systems on all types of vehicles and marine craft.
